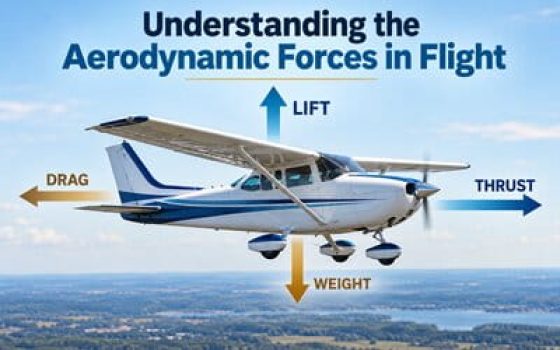

Aerodynamics is the study of how gases interact with moving bodies – and in the realm of aviation, it’s the cornerstone that allows aircraft to soar through the skies. When an airplane takes flight, it encounters four primary aerodynamic forces: lift, weight, thrust, and drag.
Understanding these forces is not just for pilots and engineers; it’s essential knowledge for anyone fascinated by the art and science of flight. From the moment an aircraft’s wheels leave the runway to the point of touchdown, these forces are in a constant state of interplay, dictating the aircraft’s performance and the smoothness of the flight.
In this lesson, we’ll delve into each force, unraveling their complexities and their roles in the incredible feat that is human flight.
Lift : The force that defies gravity
Lift is the aerodynamic force that is perpendicular to the flight path and is crucial for keeping the aircraft airborne. It’s generated primarily by the wings of the aircraft through a difference in air pressure. When air flows over and under the wing, it travels faster over the top surface, creating lower pressure compared to the higher pressure under the wing. This pressure differential produces lift, effectively countering the weight of the aircraft and allowing it to rise.
Factors that affect lift include the shape and size of the wing (referred to as the airfoil), the angle of attack (the angle between the wing and the oncoming air), airspeed, and air density.
Lift : Scientific principles
- Newton’s Third Law of Motion: For every action, there is an equal and opposite reaction. In terms of flight, this law explains that as the aircraft wing pushes air downwards, the reaction is that the air pushes the wing upwards, creating lift. The wing’s design enables it to deflect air downward, which, by Newton’s third law, results in an upward force – the lift.
- Newton’s First Law of Motion: An object in motion tends to stay in motion at a constant velocity unless acted upon by an unbalanced force. In flight, this law is observed when the aircraft reaches a cruising altitude and speed where lift equals weight, and thrust equals drag, allowing the airplane to maintain steady flight with no net external force acting upon it.
- Bernoulli’s Principle: This principle states that as the speed of a fluid increases, its pressure decreases. Applied to aviation, when air travels over the curved upper surface of the wing, it moves faster than the air below the wing. According to Bernoulli’s principle, this results in lower pressure on top of the wing and higher pressure below, contributing to the lift force.
How lift is created
When air encounters the leading edge of a wing, it divides – some flowing over the top of the wing and some underneath. An airplane wing is designed with a special shape, known as an airfoil, which causes the air on top to travel faster than the air below. According to Bernoulli’s Principle, the faster-moving air above the wing has lower pressure compared to the slower-moving air beneath the wing.
This pressure difference creates an upward force on the wing—lift. The greater the velocity of the airplane, the greater the pressure difference, and thus, the stronger the lift. This principle, while seemingly simple, requires a precise balance of wing shape, angle of attack, and airspeed, all of which pilots and engineers must carefully calibrate to achieve and maintain flight.
Center of pressure
Lift acts through the center of pressure, which is the point on the aircraft where the total sum of all aerodynamic forces is considered to act. The center of pressure is a conceptual point related to the aerodynamic center of the wing or airfoil. It’s important to note that the center of pressure can move along the chord line of the wing, which is the straight line from the leading edge to the trailing edge, depending on changes in the angle of attack and airfoil shape.
In stable flight, lift is balanced with the aircraft’s weight, which acts through the center of gravity (CG). The center of gravity is the point where the aircraft’s mass is considered to be concentrated. For an aircraft to be stable and controllable, the center of gravity must be within certain limits relative to the center of pressure. If the center of gravity is too far forward or aft, the aircraft may become difficult to control.
Airfoil shape and lift
The shape of an airplane wing, or airfoil, is deliberate in its geometry, designed specifically to enhance the aircraft’s ability to generate lift. An airfoil typically features a curved upper surface and a flatter lower surface, which are key to its ability to create the necessary pressure differential for lift as described by Bernoulli’s Principle.
The curvature, known as camber, is more pronounced on the top and gentler on the bottom, which causes air passing over the top to travel a longer path. This design accelerates the airflow over the top surface, reducing the pressure according to Bernoulli’s Principle. Conversely, the air traveling beneath the wing moves along a shorter, more direct path, maintaining a relatively higher pressure. This difference in pressure above and below the wing generates an upward force—lift.
But it’s not just the camber that’s crucial for lift; the angle of incidence (see below)—the angle at which the wing is attached to the fuselage—also plays a significant role. It is set to optimize the wing’s lift generation at various flight speeds and aircraft weights.
Moreover, the leading edge of the wing is shaped to be smooth and rounded, allowing air to flow smoothly around it, minimizing turbulence and drag, which are detrimental to efficient lift generation. The trailing edge, conversely, tapers to a thinner profile, which helps in reducing the wake and thereby the drag behind the wing.
The science of the airfoil doesn’t stop with the wing’s cross-sectional design. The span and aspect ratio of the wing, which relate to the length and width of the wing, respectively, also affect how the air flows around it and thus influence lift. A higher aspect ratio, found in wings that are long and narrow, provides more lift and less drag, making them ideal for high-altitude, long-distance flight.
In essence, the airfoil shape of a wing is a masterclass in aerodynamic engineering, reflecting a deep understanding of the physics of lift. It encapsulates the complex relationship between shape and airflow, showcasing how human ingenuity harnesses natural forces to enable the wonder of flight.
See the animation (please wait a moment for the animation to load).
Factors affecting lift
Angle of Attack
The angle of attack (AOA) is a critical factor influencing lift, defined as the angle between the chord line of the wing and the oncoming air, or relative wind. This angle is pivotal in regulating the distribution of pressure around the wing and, by extension, the amount of lift a wing generates.
An optimal angle of attack allows the wing to produce the maximum amount of lift with the least amount of drag. When the angle of attack is increased (up to a point), the lift also increases. This is because the wing diverts more air downwards, and according to Newton’s third law, the reaction force of this action pushes the wing upwards.
However, there is a limit to this principle. If the angle of attack is increased beyond a certain critical point, the smooth flow of air over the wing is disrupted, leading to a stall. A stall occurs when the airflow separates from the upper surface of the wing, causing a rapid decrease in lift and potentially resulting in a loss of control.
Pilots must manage the angle of attack carefully, particularly during takeoff and landing, when the risk of stalling is most significant due to lower speeds and higher angles of attack required. Aircraft designers also implement various technologies such as leading-edge slats and trailing-edge flaps to modify the wing shape and effectively increase the critical angle of attack, allowing the aircraft to fly safely at slower speeds or with heavier loads.
Angle of Incidence
The angle of incidence is a fixed angle, set during the design and construction of the aircraft. It is the angle between the chord line of the wing and the longitudinal axis of the aircraft fuselage. Unlike the angle of attack, the angle of incidence does not change during flight; it is built into the aircraft to optimize the wing’s lift characteristics in typical cruising attitudes. The angle of incidence determines the basic stance of the wing as the airplane moves forward, ensuring that the wing is positioned to generate lift efficiently under normal flight conditions.
In essence, while the angle of attack can be altered by the pilot to control the aircraft’s lift during flight, the angle of incidence is determined by the aircraft’s designers to ensure optimal performance across the flight envelope. The two angles work in concert: the angle of incidence sets a baseline for lift generation, while the angle of attack provides the pilot with the means to adjust lift in real-time.
Airspeed plays an integral role in the generation of lift. It is the velocity of the airplane as it moves through the air, and it is fundamentally linked to the aerodynamic forces acting upon the aircraft, including lift.
As airspeed increases, the flow of air over the wing becomes more rapid. According to Bernoulli’s Principle, this increased velocity results in a lower pressure on the upper surface of the wing. Conversely, the pressure on the lower surface remains relatively higher due to slower airspeed. This pressure difference is what generates lift. Therefore, as airspeed increases, so does lift.
However, the relationship between airspeed and lift is not linear and is subject to the condition that the angle of attack and other factors remain constant. Aircraft wings are designed to operate efficiently within a specific range of airspeeds. Below the minimum airspeed, an aircraft cannot generate enough lift to support its weight, while at speeds too high, the aircraft may experience structural stress or excessive lift that can lead to a loss of control.
Pilots must manage airspeed meticulously, particularly during critical phases of flight such as takeoff, climb, cruise, and landing. During takeoff, pilots accelerate to a speed that ensures sufficient lift for the aircraft to leave the ground. In cruise, they maintain an airspeed that maximizes fuel efficiency and safety. Upon landing, they reduce airspeed in a controlled manner to descend safely and land at a speed where the aircraft can be managed on the runway.
In aircraft design, considerations of airspeed influence many aspects, such as the wing’s shape, size, and the incorporation of devices like flaps and slats, which can change the wing’s characteristics to maintain lift at varying airspeeds. The precise management of airspeed is thus essential for the effective and safe generation of lift.
Wing area is a fundamental factor affecting lift, representing the size of the wing’s surface that interacts with the air. This area is typically measured in square feet or square meters and directly influences the amount of lift an aircraft can generate.
The larger the wing area, the more air molecules are displaced by the wing, which can generate more lift. This is because lift is proportional to the wing area: doubling the wing area, all other factors being equal, could potentially double the lift. A larger wing area can support a greater weight, which is why larger aircraft designed to carry heavier loads have expansive wings.
However, a larger wing area also comes with increased drag, which is the resistance an object encounters as it moves through the air. Therefore, there is a balance to be struck in wing design between having enough area to produce required lift and not producing so much drag that the engine’s thrust cannot efficiently overcome it.
For instance, fighter jets have relatively small wing areas compared to their body size, giving them high maneuverability and the ability to sustain higher speeds with less drag. In contrast, gliders have very large wing areas relative to their body size, allowing them to stay aloft with minimal forward speed.
Aircraft designers must consider the intended use of the aircraft when determining the wing area. For commercial airliners, which require a balance between lift and fuel efficiency, the wing area is designed to provide enough lift while cruising at high altitudes with optimal fuel economy. For cargo planes, the wing area might be increased to accommodate the additional weight of the cargo.
In summary, wing area is a critical determinant of an aircraft’s lifting capacity, influencing not only the lift but also the overall performance characteristics of the aircraft. It must be carefully considered and balanced with other design factors to achieve the desired performance outcomes.
Air density, which refers to the mass of air per unit volume, is a crucial factor that influences the lift of an aircraft. It is affected by altitude, temperature, and humidity, with higher altitudes, higher temperatures, and higher humidity levels all leading to lower air density.
At higher altitudes, the air is less dense because the atmosphere is thinner. This means there are fewer air molecules for the wing to interact with to create lift. Consequently, an aircraft must travel faster or have a larger wing area or a higher angle of attack to compensate for the reduced air density and maintain the same level of lift as at sea level.
Temperature also affects air density, with warmer air being less dense than cooler air. On hot days, the air molecules are more spread out, which can reduce lift and increase the runway distance required for takeoff. Pilots and air traffic controllers must account for this when calculating takeoff distances, particularly in hot climates or during heatwaves.
Humidity plays a role as well, with higher humidity meaning more water vapor in the air, which is less dense than dry air. This can also affect lift, although its impact is less pronounced than that of altitude or temperature.
Understanding air density is essential for pilots, who must adjust their flight operations according to the density altitude — the altitude relative to the standard atmosphere conditions at which the air density would be equal to the current air density. For aircraft designers, air density is a critical factor in determining the aerodynamic and engine performance specifications.
In effect, air density is a variable that is constantly monitored and compensated for in aviation, to ensure sufficient lift is generated to sustain flight under varying environmental conditions.
Lift : The role of aircraft control surfaces
Ailerons are vital control surfaces located on the trailing edge of the wings of an aircraft, typically towards the wingtips. They work in pairs, with one aileron on each wing, moving in opposite directions to each other: as one aileron moves up, the other moves down. This movement creates a differential in lift between the two wings, which in turn causes the airplane to roll about its longitudinal axis.
When the pilot wants to initiate a turn, they will use the aircraft’s control wheel or stick to deflect the ailerons. If the control is moved to the right, the right aileron moves up, decreasing the lift on that wing, while the left aileron moves down, increasing the lift on the left wing. This imbalance in lift causes the aircraft to roll to the right, allowing the pilot to perform a turn.
The precise control of ailerons is crucial for maintaining level flight during straight flight paths, for making coordinated turns, and for stabilizing the aircraft during turbulence. They are also essential for the execution of more complex flight maneuvers, whether in a commercial flight environment or in aerobatic flying.
Elevators are primary control surfaces attached to the trailing edge of the horizontal stabilizer at the rear of an aircraft. They move up or down in unison to control the pitch of the airplane, which is the angle of the aircraft’s nose relative to the oncoming air and the horizon. By altering pitch, elevators influence the aircraft’s altitude and angle of climb or descent.
When a pilot pulls back on the control yoke or stick, the elevators tilt upwards, increasing the angle of attack of the tailplane and creating more lift at the rear of the aircraft. This causes the tail to rise and the nose to drop, making the aircraft climb. Conversely, pushing the control yoke or stick forward causes the elevators to tilt downwards, decreasing the tailplane’s angle of attack, which lowers the tail and raises the nose, resulting in a descent.
The rudder is a crucial control surface located on the vertical stabilizer or fin at the tail of an aircraft. It is used to control the aircraft’s yaw, which is the side-to-side movement of the nose. This is accomplished by altering the airflow around the vertical stabilizer, thus creating a force that moves the tail to the left or right and causes the nose to rotate in the opposite direction.
When the pilot applies left rudder, for instance, the rudder deflects to the left, creating more lift on that side and pushing the tail to the right, causing the aircraft’s nose to yaw to the left. The opposite occurs with right rudder input. The rudder’s primary role is to provide directional control and to counteract adverse yaw during asymmetric thrust situations or when one wing generates more lift than the other, such as during turns.
The rudder is also essential in maintaining coordinated flight, where the balance between the aileron and rudder input prevents slipping or skidding during turns. This coordination is important not only for passenger comfort but also for the structural integrity of the aircraft, ensuring that the forces on the airframe remain within safe limits.
Flaps are a type of high-lift device situated on the trailing edge of the wing between the fuselage and the ailerons. They are pivotal in modifying the wing’s lift and drag characteristics during specific phases of flight, particularly during takeoff and landing.
During takeoff, deploying flaps to a moderate setting increases the camber of the wing, which enhances the wing’s lift-generating capabilities at lower speeds. This allows the aircraft to become airborne at a lower takeoff speed and reduces the length of runway needed.
In the landing phase, flaps are deployed further, which dramatically increases the surface area and camber of the wing. This not only increases lift but also increases drag, which allows the aircraft to fly at a controlled slower speed without stalling and to descend at a steeper angle without gaining speed. The increased drag also aids in reducing the landing distance after touchdown, enabling the aircraft to land on shorter runways.
Winglets are the small, vertical fins at the tips of an aircraft’s wings. Their primary function is to improve the aircraft’s aerodynamic efficiency by reducing induced drag, which is a byproduct of lift generation. Induced drag is created by the high-pressure air on the bottom of the wing spilling over the wingtip into the low-pressure area on top, resulting in a vortex of swirling air.
The winglets act to disrupt these wingtip vortices, reducing the strength of these vortices and thereby the induced drag. They work by increasing the effective aspect ratio of the wing without the need for adding additional wingspan. An increased aspect ratio typically improves efficiency because it reduces the amount of energy lost to creating the vortices. However, adding wingspan could be impractical due to limitations at airport gates, structural weight increases, and other operational considerations.
The ground effect refers to the increased lift and decreased aerodynamic drag that an aircraft’s wings generate when the aircraft is close to the ground. This phenomenon occurs when an aircraft is within a wingspan’s distance above the ground, typically during the final stages of landing and the initial phase of takeoff.
When flying close to the ground, the ground interferes with the airflow patterns around the aircraft. The presence of the ground alters the wingtip vortices, which in free air contribute to a significant amount of induced drag. By inhibiting these vortices, the ground effect reduces induced drag. Furthermore, the air between the wing and the ground is compressed, which effectively increases the air pressure beneath the wing and adds to the lift produced.
Pilots can feel the ground effect as a cushioning force, providing extra lift without an increase in speed. This can be beneficial during landing, as it allows for a softer touchdown and can reduce landing speeds and distances. However, it must be managed carefully during takeoff because it can give a false sense of lift, leading to premature rotation and a potential stall if the aircraft is not actually at a speed where it can sustain flight outside of the ground effect.
FAQ about airplane lift
- What exactly is lift in aviation?
- Lift is the aerodynamic force that acts perpendicular to the relative motion between the aircraft and the air. It is generated primarily by the aircraft’s wings and is essential for an airplane to ascend, descend, or maintain altitude during flight.
- How is lift created on an airplane?
- Lift is created by the difference in air pressure on the upper and lower surfaces of the aircraft’s wings. This pressure difference is a result of the wing’s shape (airfoil) and the angle at which it meets the oncoming air (angle of attack), along with the airspeed and the density of the air.
- Does the shape of the wing affect lift?
- Yes, the shape of the wing, or airfoil, is crucial in creating the pressure differential needed for lift. Wings are designed with a specific curvature and aspect ratio to maximize lift while minimizing drag.
- Can airplanes generate lift at low speeds?
- Yes, airplanes can generate lift at low speeds by increasing the angle of attack and using flaps to change the shape of the wing for increased lift. However, there is a limit to this before the wing stalls and lift is lost.
- What is a stall in aviation?
- A stall occurs when the airflow over the wing’s surface becomes too disrupted to generate sufficient lift, typically due to a high angle of attack. This can result in a loss of altitude if not corrected promptly.
- Why do airplanes have different wing shapes?
- Different wing shapes are designed to suit the specific performance requirements of an aircraft, such as speed, weight, and the type of flying it will perform. For example, gliders have long, narrow wings for efficiency in slow flight, while supersonic jets have short, swept-back wings for high-speed performance.
- How do control surfaces like ailerons and flaps affect lift?
- Ailerons control the aircraft’s roll and can affect the distribution of lift across the wings, while flaps increase the area and camber of the wing, increasing lift, especially at slower speeds during takeoff and landing.
- Can weather affect an airplane’s lift?
- Yes, factors like air temperature, density, and wind conditions can significantly affect lift. Pilots must adjust their flight technique to accommodate these changing conditions to maintain sufficient lift.
- How do pilots control lift during flight?
- Pilots control lift by adjusting the airplane’s speed, using the control surfaces (like ailerons, elevators, and flaps), and changing the engine thrust. These adjustments help manage the aircraft’s altitude and attitude.
- What are winglets, and how do they affect an airplane’s lift?
- Winglets are vertical extensions of the wingtips that improve an airplane’s lift-to-drag ratio. They help reduce the strength of wingtip vortices, which decreases induced drag and improves fuel efficiency and range.
Weight : The downward force
Weight is the force exerted by gravity on the aircraft. It includes the airframe, passengers, crew, fuel, and cargo. This force is counteracted by lift during flight. For a plane to ascend, the lift must exceed weight; conversely, for a plane to descend, the lift must be less than the weight.
The distribution of this weight is just as crucial as the total weight itself. Improperly distributed weight can lead to a shift in the center of gravity, adversely affecting the aircraft’s stability and control.
Weight and Center of Gravity
Weight is not only about the total mass but also its distribution, which directly affects the aircraft’s center of gravity (CG). The CG is the point at which an airplane would balance if it were possible to suspend it at that point. It’s the virtual point where the mass of the aircraft is said to be concentrated. For safe and efficient flight, the weight must be distributed within certain limits; these are defined by the aircraft manufacturer and are critical for maintaining control of the aircraft.
- Balance: Proper weight distribution ensures the aircraft is balanced. If the CG is too far forward or aft, it can lead to control issues, increasing the risk during takeoff and landing.
- Stability: The CG affects the aircraft’s stability. A forward CG leads to a more stable aircraft, which can be beneficial in turbulent air. However, it can also result in a higher stall speed and longer takeoff run. A rearward CG makes the aircraft less stable, which can be advantageous for maneuverability but also increases the risk of an aerodynamic stall.
- Performance: The position of the CG impacts the aircraft’s performance, including its climb rate, cruising speed, and fuel efficiency. Pilots must ensure the CG is within the allowable range to optimize performance.
Managing Weight and Center of Gravity
- Loading: Proper loading procedures are essential. Cargo and baggage need to be placed in specific compartments, and fuel must be distributed correctly among the tanks to maintain the desired CG.
- Weight Shifts: During flight, the CG can shift, for instance, as fuel is burned or if passengers move around the cabin. Pilots must be aware of these shifts and may need to adjust trim or redistribute weight as necessary.
- Calculations: Pilots perform weight and balance calculations before every flight. This involves determining the aircraft’s loaded weight and ensuring the CG falls within the specified limits.
In essence, while weight dictates how much lift an aircraft needs to become airborne, the center of gravity dictates how that lift is applied across the aircraft’s structure to maintain balance and control. Mastery over these concepts is crucial for the safety and efficiency of flight operations.
The impact of weight on flight
- Takeoff: Heavier aircraft require more thrust and a higher airspeed to generate the necessary lift for takeoff.
- Climb: The aircraft’s ability to climb is directly affected by its weight; the heavier the aircraft, the more power it needs to ascend.
- Cruise: In cruise flight, a delicate balance between lift and weight must be maintained for efficient flight. Excess weight can lead to increased fuel consumption.
- Maneuverability: A lighter aircraft is typically more nimble, which is why cargo and fuel management is crucial for aircraft handling.
- Landing: Upon descent and approach, the pilot must consider the weight to calculate the landing distance and to ensure the aircraft can safely stop within the available runway.
FAQ about airplane weight
- What comprises the weight of an airplane
- The weight of an airplane includes the structure itself, passengers and crew, cargo, and fuel. Each of these components is crucial for different phases of flight and impacts the aircraft’s performance.
- How does the weight of an airplane affect its flight?
- The weight of an airplane affects takeoff distance, climb rate, speed, and fuel efficiency. Heavier aircraft require more lift and thrust to overcome their weight, which can lead to increased fuel consumption and reduced range.
- Why is weight distribution important in an airplane?
- Proper weight distribution is vital for maintaining the aircraft’s center of gravity within specified limits, ensuring stability and control during flight. Improper distribution can lead to difficulty in handling and even loss of control.
- Can an airplane be too heavy to fly?
- Yes, if an airplane exceeds its maximum takeoff weight (MTOW), it may not be able to achieve enough lift or may not comply with safety regulations, thus being too heavy to fly legally or safely.
- How do pilots know if the airplane is within safe weight limits?
- Pilots use weight and balance calculations, often with the help of load sheets, computer systems, and standard operating procedures, to ensure the aircraft’s weight is within the safe operating limits before every flight.
- Does weight affect fuel consumption
- Absolutely, the heavier the airplane, the more thrust is needed to overcome gravity, leading to higher fuel consumption. Efficient weight management is a key aspect of flight planning for cost control and environmental considerations.
- How does airplane weight change during flight?
- The weight of an airplane steadily decreases during flight due to fuel consumption. This change is accounted for in the flight’s planning stages and can affect the aircraft’s handling and performance.
Thrust: The propelling force
In aviation, thrust is the force that moves an aircraft forward. It’s the jet engines or propellers that do the hard work, pushing or pulling the plane through the air. Thrust is produced by accelerating a mass of air or gas in the opposite direction to the desired movement – a principle encapsulated by Newton’s Third Law of Motion: for every action, there is an equal and opposite reaction.
Thrust generation in different engine types
There are different types of engines used in aircraft, each with its unique method of generating thrust:
- Jet Engines: These powerhouses compress air, mix it with fuel, and then ignite it. The resulting explosion drives a turbine and creates a high-speed rearward jet of gas, propelling the aircraft forward.
- Turbofans: Most modern passenger jets use these. They are similar to jet engines but with an added fan at the front, which brings in additional air. This air is not only used for combustion but also bypasses the core, providing more thrust and efficiency.
- Turboprops: These combine a propeller with a turbine engine. The turbine part works like a jet engine, but instead of using the exhaust gases to produce thrust directly, it turns a propeller, which then moves the aircraft forward.
- Piston Engines with Propellers: Common in smaller planes, these are internal combustion engines similar to what you’d find in a car. They turn propellers, which bite into the air like a screw into wood, pulling or pushing the airplane forward.
Thrust and aircraft performance
Thrust directly affects an aircraft’s performance:
- Takeoff: Sufficient thrust must overcome the aircraft’s weight and drag to achieve the necessary lift-off speed.
- Climb: After takeoff, thrust must exceed drag significantly to climb to cruising altitude efficiently.
- Cruise: At cruising altitude, thrust is adjusted to balance with drag, allowing the aircraft to maintain a steady speed and altitude.
- Maneuvering: During turns, climbs, or descents, pilots manage thrust to control the aircraft’s speed and trajectory effectively.
Thrust management is a dynamic aspect of flying, requiring careful adjustment in response to changes in aircraft weight, air density, and desired flight path. Understanding how to manage thrust is a vital skill for pilots, ensuring safe and efficient operation of the aircraft throughout all phases of flight.
FAQ about airplane thrust
- What is thrust in the context of an airplane?
- Thrust is the aerodynamic force produced by an aircraft’s engines to propel it forward through the air. It counteracts drag and, combined with lift, enables the airplane to take off, climb, cruise, and maneuver.
- How do airplane engines create thrust?
- Airplane engines create thrust through different mechanisms, depending on the type of engine. Jet engines expel hot gases backward, pushing the plane forward. Propeller engines use rotating blades to pull or push the airplane through the air. The basic principle is Newton’s Third Law of Motion: for every action, there’s an equal and opposite reaction.
- Why do some airplanes have engines with large front fans?
- Airplanes with large front fans, typically called turbofans, are designed for efficiency at high altitudes and speeds. The large fan at the front of the engine draws in air, part of which goes into the engine core for combustion and the rest is bypassed around the core. This bypassed air provides additional thrust and reduces fuel consumption.
- How do pilots control the amount of thrust during a flight?
- Pilots control the amount of thrust by adjusting the throttle, which regulates fuel flow to the engines. Increasing the throttle increases power and thrust, while decreasing it reduces power and thrust. Modern aircraft also have sophisticated engine management systems that assist in controlling and optimizing thrust.
- What happens if an airplane loses thrust during flight?
- If an airplane loses thrust during flight, it can glide for a considerable distance, allowing pilots to attempt an emergency landing. Pilots are trained to handle such situations, and aircraft are designed to be aerodynamically efficient even without engine power.
- Does the weight of an airplane affect thrust requirements?
- Yes, the weight of an airplane directly affects the amount of thrust required. Heavier airplanes need more thrust to take off, climb, and maintain cruising speed. Pilots and flight planners must account for weight when calculating the necessary thrust for safe flight operations.
- How does altitude affect engine thrust?
- As altitude increases, air density decreases, which can reduce engine thrust because there is less air available for combustion (in jet engines) or for the propellers to act upon (in propeller engines). Aircraft engines are designed to operate efficiently at specific altitudes, and pilots must manage engine power to accommodate for changes in air density.
- Is thrust the same at all speeds?
- No, thrust varies with speed. At higher speeds, engines must produce more thrust to overcome increased drag. Conversely, at lower speeds, less thrust is needed. The relationship between speed, thrust, and drag is a fundamental aspect of flight dynamics.
- How do weather conditions impact thrust?
- Weather conditions such as temperature, pressure, humidity, and wind can impact thrust. Hotter air is less dense, which can reduce engine performance. High humidity can also affect engine thrust. Wind direction can either aid thrust (tailwind) or require more thrust (headwind) to maintain speed.
Drag: The resisting force
Drag is the aerodynamic force that opposes an aircraft’s motion through the air. It’s the friction and resistance that pilots must overcome to maintain speed and efficiency. There are two primary types of drag that affect an aircraft: parasite drag and induced drag.
This form of drag is independent of the aircraft’s lift and is a byproduct of the airframe’s shape, texture, and any additional protrusions that disrupt the smooth flow of air. Parasite drag increases with the square of the aircraft’s speed, meaning that as an aircraft goes faster, the resistance grows exponentially. It can be further broken down into form drag, skin friction, and interference drag.
- Form Drag arises from the shape of the aircraft. Streamlined designs help reduce this type of drag, allowing the air to flow more smoothly around the airframe.
- Skin Friction is a result of the texture of the aircraft’s surface. A smooth, polished surface offers less resistance than a rough one.
- Interference Drag occurs when varying currents of air over the aircraft’s structure meet and interact, often at points where different parts of the aircraft join, like the wings and the fuselage.
This type is inherently linked to lift. When an aircraft’s wing generates lift, it also produces wingtip vortices, which create a drag force. Induced drag is higher at lower speeds, particularly during takeoff and landing when the aircraft requires more lift. One way to minimize induced drag is through wing design innovations, such as winglets, which help reduce the strength of wingtip vortices.
Managing drag is a critical aspect of aircraft design and operation. Designers strive for aerodynamic efficiency by creating shapes that minimize resistance, selecting materials that offer a smooth finish, and innovating wing designs to counteract induced drag. Pilots, on the other hand, manage drag in real-time by adjusting flaps, slats, and other control surfaces to find the perfect balance between lift, weight, and thrust for the most efficient flight.
Understanding drag is not just about combating it—it’s about using it to the aircraft’s advantage. For instance, during the descent and landing phases, pilots intentionally increase drag through various means such as deploying speed brakes or extending the landing gear, to safely reduce airspeed and prepare for touchdown.
FAQ about airplane drag
- What exactly is airplane drag?
- Airplane drag is the force that opposes an aircraft’s forward motion through the air. It’s a type of aerodynamic resistance that includes various forms such as parasite drag and induced drag, each with its own causes and factors that can increase or decrease the amount of resistance encountered.
- Why is drag significant in flight?
- Drag is significant because it directly affects fuel efficiency, range, speed, and the overall performance of the aircraft. Understanding and managing drag allows for more efficient flight operations and can lead to cost savings as well as environmental benefits.
- How do pilots control drag during a flight?
- Pilots can control drag by adjusting the aircraft’s speed, altitude, and configuration. For example, retracting the landing gear and flaps reduces parasite drag, and careful management of the angle of attack can help control induced drag.
- Can drag ever be beneficial during a flight?
- Yes, drag can be beneficial, particularly during the descent and landing phases of flight. Increasing drag helps to slow down the aircraft, allowing for a safer and more controlled approach and landing. This is typically achieved by extending the landing gear, deploying flaps, or using speed brakes.
- How do aircraft designers reduce the impact of drag on airplanes?
- Aircraft designers use aerodynamic shaping, smooth materials, and innovative technologies like winglets to reduce drag. They aim to create streamlined aircraft with minimal protrusions to reduce form drag and design wings that are efficient in minimizing induced drag.
- What are winglets, and how do they reduce drag?
- Winglets are vertical or angled extensions at the tips of the wings. They reduce induced drag by smoothing the airflow around the wingtips, decreasing the strength of wingtip vortices, and making the wing more aerodynamically efficient.
The interplay of forces during Takeoff, Flight, and Landing
The interplay of forces during the different phases of flight is a ballet of physics that requires a harmonious balance for successful aviation. Each phase of flight – takeoff, cruising, and landing – presents its own unique challenges and demands on the aircraft.
Takeoff: During takeoff, thrust must overcome both drag and the aircraft’s weight to achieve the necessary speed for lift-off. Pilots adjust the flaps to increase lift at lower speeds. As the aircraft accelerates, thrust is maintained to counteract drag and continue the climb. The moment when lift exceeds weight, the aircraft leaves the ground, marking the transition from ground travel to flight.
Cruising: Once at cruising altitude, the goal is to maintain level flight. This is achieved when lift equals weight, and thrust equals drag. The aircraft’s engines provide just enough thrust to counteract drag, while the wings generate sufficient lift to balance the weight of the aircraft. It’s a state of equilibrium where the forces of lift and drag are finely tuned for efficient travel over long distances.
Landing: The approach and landing phase requires a reduction in altitude and speed, necessitating a careful decrease in thrust and a managed increase in drag. Flaps and slats are extended to increase the surface area of the wing, thus increasing lift and drag at lower speeds. The landing gear is deployed, adding to drag and further reducing speed. Thrust is reduced, and the aircraft descends. Upon touchdown, reverse thrust and braking systems are employed to reduce speed and safely bring the aircraft to a halt.
In each phase, pilots make continuous adjustments to maintain the delicate balance between these forces. During takeoff, the focus is on generating enough lift to ascend, while during landing, controlled drag is used to descend safely. The art of flying is in the pilot’s ability to adapt to the dynamic interplay of these forces, ensuring a smooth and safe journey from start to finish.
Conclusion and key takeaways
In the intricate dance of flight, the forces of lift, weight, thrust, and drag play a pivotal role. They are the unseen architects of aviation, creating the delicate balance that allows an aircraft to leave the earth, cruise at altitude, and return gracefully to the ground. Here are the key takeaways from our exploration of these aerodynamic forces:
- Lift is the force that counters gravity, generated by the differential in air pressure across the wings of the aircraft. The design of the wing, the angle of attack, airspeed, and air density are all vital in influencing lift.
- Weight is the force due to gravity pulling the aircraft toward the Earth. It is a constant force that depends on the mass of the aircraft and its contents, which includes fuel, passengers, and cargo.
- Thrust is the forward force produced by the aircraft’s engines. It must overcome drag for the aircraft to accelerate and maintain speed. The type of engine—whether a piston, turboprop, or jet engine—has a significant impact on the characteristics of thrust.
- Drag is the resistance force that acts opposite to the direction of flight. It is caused by friction and differences in air pressure and must be overcome by thrust to keep the aircraft moving forward.
Understanding how these forces interact is crucial for designing aircraft, planning flights, and piloting. Pilots manipulate these forces during every phase of a flight to ensure safety and efficiency. Aircraft designers strive to optimize these forces to create faster, more economical, and capable airplanes.
Typical exam questions
You will find answers to questions at the end of the test.
1 : Which aerodynamic force opposes the weight of an aircraft to support it in the air?
- A) Drag
- B) Thrust
- C) Lift
- D) Gravity
2 : What is the term for the point where the aircraft’s mass is considered to be concentrated?
- A) Aerodynamic center
- B) Center of thrust
- C) Center of pressure
- D) Center of gravity
3 : During level flight, which of the following statements is true?
- A) Lift is greater than weight.
- B) Thrust is equal to drag.
- C) Weight is greater than lift.
- D) Drag is equal to weight.
4 : What happens when the angle of attack is increased beyond a critical point?
- A) The aircraft will accelerate.
- B) The drag will significantly decrease.
- C) The aircraft may stall due to loss of lift.
- D) The aircraft will enter a steep climb.
5 : Which type of drag is produced by the friction of air flowing over the aircraft’s surface?
- A) Induced drag
- B) Parasitic drag
- C) Form drag
- D) Skin friction drag
6 : Thrust in an aircraft is typically produced by which of the following?
- A) Wings
- B) Flaps
- C) Engines
- D) Ailerons
7 : If an airplane is experiencing unaccelerated flight, which of the following must be true?
- A) Thrust is less than drag.
- B) Lift is less than weight.
- C) Thrust is equal to drag and lift is equal to weight.
- D) Lift and thrust are both greater than weight and drag, respectively.
8 : Which factor does not affect the lift produced by an airfoil?
- A) Angle of attack
- B) Wing area
- C) Paint color of the aircraft
- D) Airspeed
9 : In which phase of flight is induced drag typically the highest?
- A) Cruise
- B) Takeoff
- C) Landing
- D) High-altitude flight
10 : For a given airplane, if the weight remains constant, but the airspeed is increased, what happens to the lift?
- A) It decreases.
- B) It remains constant.
- C) It increases.
- D) It fluctuates unpredictably.
- C) Lift – Lift is the aerodynamic force that opposes gravity and supports the aircraft in the air.
- D) Center of gravity – The center of gravity is where the aircraft’s mass is considered to be concentrated.
- B) Thrust is equal to drag. – During level flight, lift equals weight, and thrust equals drag to maintain a steady altitude and velocity.
- C) The aircraft may stall due to loss of lift. – Beyond a critical angle of attack, the airflow over the wing can separate, causing a stall.
- D) Skin friction drag – Skin friction drag is produced by the friction of air flowing over the aircraft’s surface.
- C) Engines – Engines are responsible for producing thrust in an aircraft.
- C) Thrust is equal to drag and lift is equal to weight. – In unaccelerated flight, the forces of thrust and drag, and lift and weight, are balanced.
- C) Paint color of the aircraft – The color of the aircraft does not affect the aerodynamic lift.
- B) Takeoff – Induced drag is typically highest during takeoff when the aircraft is at a lower speed and the angle of attack is higher to generate sufficient lift.
- C) It increases. – Lift is generally proportional to the square of the airspeed; if the airspeed increases and all other factors remain constant, the lift will increase.
